Nodes

The durable object

AgentState has only two top-level fields: the nodes and the frontier.

type AgentState = {
  version: 1;
  nodes: CausalNode[];
  frontier: string[];
};

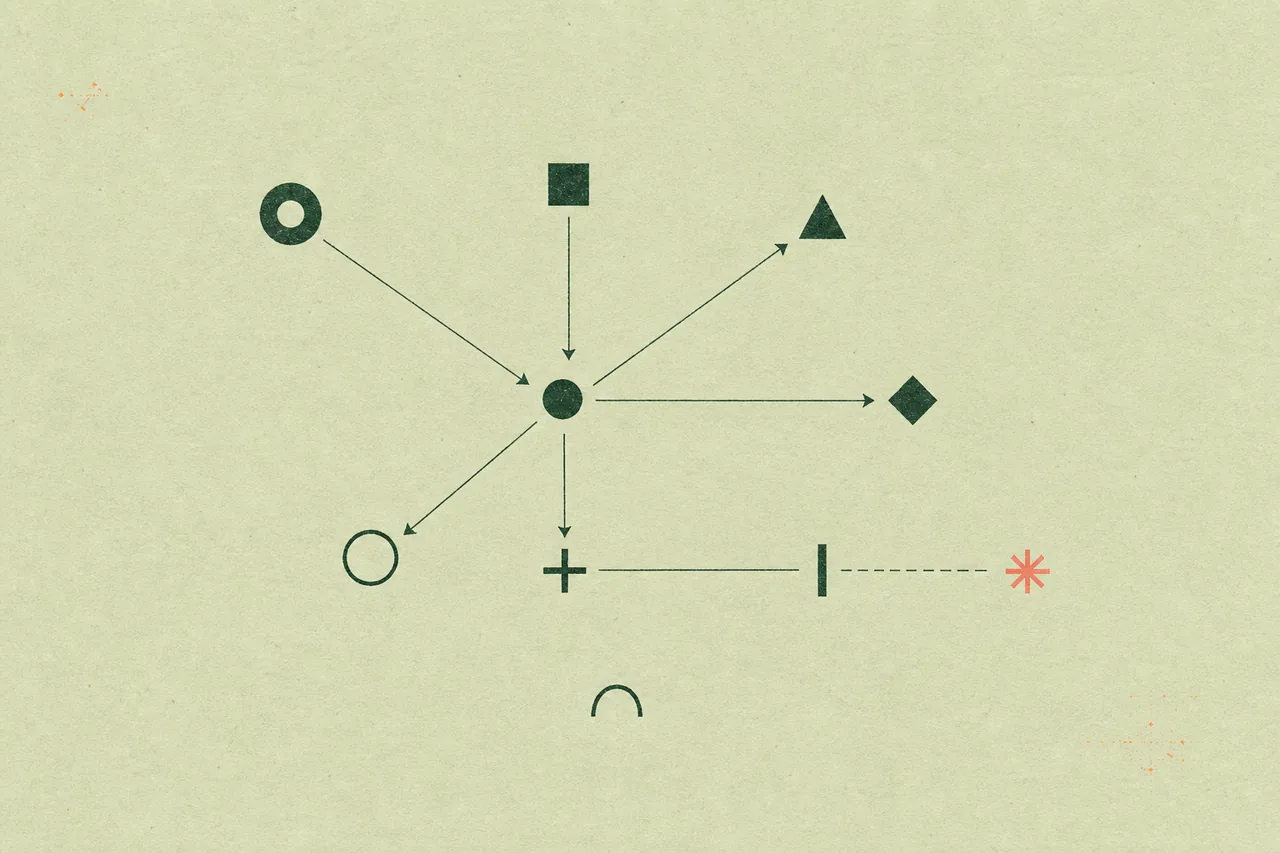

It is JSON, provider-neutral, and owned by your application. A vocabulary of ten distinct node categories in one causal graph

Node anatomy

type CausalNode = {
  id: string;
  kind: CausalNodeKind;
  parents: string[];
  payload: unknown;
  createdAt: string;
  sequence: number;
  resourceKey?: string;
};

Field	Meaning
`id`	`cw_` plus a truncated SHA-256 content identity
`parents`	Direct dependencies, all earlier in sequence
`payload`	Kind-specific immutable data
`sequence`	Stable insertion order
`resourceKey`	Identity shared by versions of one resource

The ten kinds

There are exactly ten. All but a few are created by the runtime.

Kind	Who creates it	What it holds
`system`	runtime	The contract given to the model
`goal`	runtime	The current user task
`inference`	runtime	The model’s output for one call
`answer`	runtime	The accepted final answer
`tool_call`	runtime	One tool invocation
`tool_result`	runtime	The typed result of that call
`resource`	runtime	A versioned file path or value
`semantic`	model + runtime	Durable memory (type, key, content)
`protocol_error`	runtime	An invalid or unsupported action
`verification`	runtime	A verification record

The frontier

The frontier is the set of active graph heads. Adding a normal node removes its parents from the frontier and adds the new node. Verification nodes are causal evidence heads; semantic nodes use keyed resource chains without replacing the answer/tool frontier. A new goal uses the previous frontier as context, so continuity carries across turns. The frontier is not “the last message.” Work can branch into several active heads.

Resource versions

A node with a resourceKey becomes one version in a chain. The next node with the same key links to the previous head.

resource:file:src/config.ts:v1 → resource:file:src/config.ts:v2

The graph keeps both. Projection shows the newest.

Semantic memory

A semantic node carries a payload with three fields:

type SemanticNodePayload = {
  type: string;
  key: string;
  content: unknown;
};

Built-in types:

memory: a durable fact or context;
preference: a stable user choice or style;
wisdom: a reusable, evidence-supported lesson;
artifact: a durable output or renderable artifact.

You can replace this vocabulary per product:

const agent = new Agent({
  model,
  nodeTypes: [
    { name: "preference", description: "A stable user preference." },
    { name: "decision", description: "A durable decision and rationale." }
  ]
});

A semantic resource key has the form semantic:<type>:<key>. Writing the same key again supersedes the old value. The model records semantic nodes inside a normal TOOL_CALL or FINAL, so memory capture needs no second call. Set allowDynamicNodeTypes: true only when the agent may invent bounded lowercase types. Configured vocabularies are easier to retrieve and govern.

Safeguards on import

The constructor and reset() check:

snapshot version;
allowed kinds;
unique IDs;
parent existence and causal order;
recomputed identities;
contiguous sequence values;
frontier references.

Treat invalid imported state as untrusted input. Do not repair it silently. Next: One turn.
